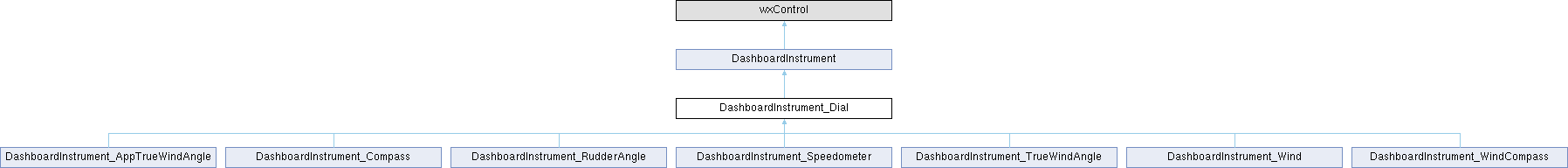

Inheritance diagram for DashboardInstrument_Dial:

Public Member Functions
	DashboardInstrument_Dial (wxWindow parent, wxWindowID id, wxString title, InstrumentProperties Properties, DASH_CAP cap_flag, int s_angle, int r_angle, int s_value, int e_value)

wxSize	GetSize (int orient, wxSize hint)

void	SetData (DASH_CAP, double, wxString)

void	SetOptionMarker (double step, DialMarkerOption option, int offset)

void	SetOptionLabel (double step, DialLabelOption option, wxArrayString labels=wxArrayString())

void	SetOptionMainValue (wxString format, DialPositionOption option)

void	SetOptionExtraValue (DASH_CAP cap, wxString format, DialPositionOption option)

Public Member Functions inherited from DashboardInstrument
	DashboardInstrument (wxWindow pparent, wxWindowID id, wxString title, DASH_CAP cap_flag, InstrumentProperties Properties=NULL)

CapType	GetCapacity ()

void	OnEraseBackground (wxEraseEvent &WXUNUSED(evt))

void	OnPaint (wxPaintEvent &WXUNUSED(event))

void	SetDrawSoloInPane (bool value)

void	MouseEvent (wxMouseEvent &event)

void	OnLeftUp (wxMouseEvent &event)

void	SetCapFlag (DASH_CAP val)

bool	HasCapFlag (DASH_CAP val)

Protected Member Functions
virtual void	Draw (wxGCDC *dc)

virtual void	DrawFrame (wxGCDC *dc)

virtual void	DrawMarkers (wxGCDC *dc)

virtual void	DrawLabels (wxGCDC *dc)

virtual void	DrawBackground (wxGCDC *dc)

virtual void	DrawData (wxGCDC *dc, double value, wxString unit, wxString format, DialPositionOption position)

virtual void	DrawForeground (wxGCDC *dc)

Protected Member Functions inherited from DashboardInstrument
virtual void	InitDataTextHeight (const wxString &sampleText, int &sampleWidth)

virtual void	InitTitleSize ()

virtual void	InitTitleAndDataPosition (int drawHeight)

virtual int	GetFullHeight (int drawHeight)

virtual int	GetDataBottom (int clientHeight)

virtual void	SetDataFont (wxGCDC *dc)

Protected Attributes
int	m_cx

int	m_cy

int	m_radius

int	m_AngleStart

int	m_AngleRange

bool	m_gpsWD

double	m_MainValue

DASH_CAP	m_MainValueCap

double	m_MainValueMin

double	m_MainValueMax

wxString	m_MainValueFormat

wxString	m_MainValueUnit

DialPositionOption	m_MainValueOption

double	m_ExtraValue

DASH_CAP	m_ExtraValueCap

wxString	m_ExtraValueFormat

wxString	m_ExtraValueUnit

DialPositionOption	m_ExtraValueOption

DialMarkerOption	m_MarkerOption

int	m_MarkerOffset

double	m_MarkerStep

double	m_LabelStep

DialLabelOption	m_LabelOption

wxArrayString	m_LabelArray

Protected Attributes inherited from DashboardInstrument
CapType	m_cap_flag

int	m_InstrumentSpacing

int	m_DataTextHeight

int	m_DataMargin

int	m_TitleWidth

int	m_TitleHeight

int	m_DataTop

int	m_TitleTop

bool	m_DataRightAlign

bool	m_TitleRightAlign

wxString	m_title

Additional Inherited Members
Public Attributes inherited from DashboardInstrument
int	instrumentTypeId

InstrumentProperties *	m_Properties

Detailed Description

Definition at line 84 of file dial.h.

Constructor & Destructor Documentation

◆ DashboardInstrument_Dial()

DashboardInstrument_Dial::DashboardInstrument_Dial	(	wxWindow *	parent,
		wxWindowID	id,
		wxString	title,
		InstrumentProperties *	Properties,
		DASH_CAP	cap_flag,
		int	s_angle,
		int	r_angle,
		int	s_value,
		int	e_value )

Definition at line 51 of file dial.cpp.

◆ ~DashboardInstrument_Dial()

DashboardInstrument_Dial::~DashboardInstrument_Dial ( void )

inline

Definition at line 90 of file dial.h.

Member Function Documentation

◆ Draw()

void DashboardInstrument_Dial::Draw ( wxGCDC * dc )

protectedvirtual

Implements DashboardInstrument.

Definition at line 102 of file dial.cpp.

◆ DrawBackground()

void DashboardInstrument_Dial::DrawBackground ( wxGCDC * dc )

protectedvirtual

Definition at line 319 of file dial.cpp.

◆ DrawData()

void DashboardInstrument_Dial::DrawData	(	wxGCDC *	dc,
		double	value,
		wxString	unit,
		wxString	format,
		DialPositionOption	position )

protectedvirtual

Definition at line 324 of file dial.cpp.

◆ DrawForeground()

void DashboardInstrument_Dial::DrawForeground ( wxGCDC * dc )

protectedvirtual

Definition at line 453 of file dial.cpp.

◆ DrawFrame()

void DashboardInstrument_Dial::DrawFrame ( wxGCDC * dc )

protectedvirtual

Definition at line 142 of file dial.cpp.

◆ DrawLabels()

void DashboardInstrument_Dial::DrawLabels ( wxGCDC * dc )

protectedvirtual

Definition at line 257 of file dial.cpp.

◆ DrawMarkers()

void DashboardInstrument_Dial::DrawMarkers ( wxGCDC * dc )

protectedvirtual

Definition at line 206 of file dial.cpp.

◆ GetSize()

wxSize DashboardInstrument_Dial::GetSize	(	int	orient,
		wxSize	hint )

virtual

Implements DashboardInstrument.

Definition at line 77 of file dial.cpp.

◆ SetData()

void DashboardInstrument_Dial::SetData	(	DASH_CAP	st,
		double	data,
		wxString	unit )

virtual

Implements DashboardInstrument.

Definition at line 90 of file dial.cpp.

◆ SetOptionExtraValue()

void DashboardInstrument_Dial::SetOptionExtraValue	(	DASH_CAP	cap,
		wxString	format,
		DialPositionOption	option )

inline

Definition at line 109 of file dial.h.

◆ SetOptionLabel()

void DashboardInstrument_Dial::SetOptionLabel	(	double	step,
		DialLabelOption	option,
		wxArrayString	labels = wxArrayString() )

inline

Definition at line 99 of file dial.h.

◆ SetOptionMainValue()

void DashboardInstrument_Dial::SetOptionMainValue	(	wxString	format,
		DialPositionOption	option )

inline

Definition at line 105 of file dial.h.

◆ SetOptionMarker()

void DashboardInstrument_Dial::SetOptionMarker	(	double	step,
		DialMarkerOption	option,
		int	offset )

inline

Definition at line 94 of file dial.h.

Member Data Documentation

◆ m_AngleRange

int DashboardInstrument_Dial::m_AngleRange

protected

Definition at line 120 of file dial.h.

◆ m_AngleStart

int DashboardInstrument_Dial::m_AngleStart

protected

Definition at line 120 of file dial.h.

◆ m_cx

int DashboardInstrument_Dial::m_cx

protected

Definition at line 119 of file dial.h.

◆ m_cy

int DashboardInstrument_Dial::m_cy

protected

Definition at line 119 of file dial.h.

◆ m_ExtraValue

double DashboardInstrument_Dial::m_ExtraValue

protected

Definition at line 128 of file dial.h.

◆ m_ExtraValueCap

DASH_CAP DashboardInstrument_Dial::m_ExtraValueCap

protected

Definition at line 129 of file dial.h.

◆ m_ExtraValueFormat

wxString DashboardInstrument_Dial::m_ExtraValueFormat

protected

Definition at line 130 of file dial.h.

◆ m_ExtraValueOption

DialPositionOption DashboardInstrument_Dial::m_ExtraValueOption

protected

Definition at line 132 of file dial.h.

◆ m_ExtraValueUnit

wxString DashboardInstrument_Dial::m_ExtraValueUnit

protected

Definition at line 131 of file dial.h.

◆ m_gpsWD

bool DashboardInstrument_Dial::m_gpsWD

protected

Definition at line 121 of file dial.h.

◆ m_LabelArray

wxArrayString DashboardInstrument_Dial::m_LabelArray

protected

Definition at line 137 of file dial.h.

◆ m_LabelOption

DialLabelOption DashboardInstrument_Dial::m_LabelOption

protected

Definition at line 136 of file dial.h.

◆ m_LabelStep

double DashboardInstrument_Dial::m_LabelStep

protected

Definition at line 135 of file dial.h.

◆ m_MainValue

double DashboardInstrument_Dial::m_MainValue

protected

Definition at line 122 of file dial.h.

◆ m_MainValueCap

DASH_CAP DashboardInstrument_Dial::m_MainValueCap

protected

Definition at line 123 of file dial.h.

◆ m_MainValueFormat

wxString DashboardInstrument_Dial::m_MainValueFormat

protected

Definition at line 125 of file dial.h.

◆ m_MainValueMax

double DashboardInstrument_Dial::m_MainValueMax

protected

Definition at line 124 of file dial.h.

◆ m_MainValueMin

double DashboardInstrument_Dial::m_MainValueMin

protected

Definition at line 124 of file dial.h.

◆ m_MainValueOption

DialPositionOption DashboardInstrument_Dial::m_MainValueOption

protected

Definition at line 127 of file dial.h.

◆ m_MainValueUnit

wxString DashboardInstrument_Dial::m_MainValueUnit

protected

Definition at line 126 of file dial.h.

◆ m_MarkerOffset

int DashboardInstrument_Dial::m_MarkerOffset

protected

Definition at line 134 of file dial.h.

◆ m_MarkerOption

DialMarkerOption DashboardInstrument_Dial::m_MarkerOption

protected

Definition at line 133 of file dial.h.

◆ m_MarkerStep

double DashboardInstrument_Dial::m_MarkerStep

protected

Definition at line 135 of file dial.h.

◆ m_radius

int DashboardInstrument_Dial::m_radius

protected

Definition at line 119 of file dial.h.

The documentation for this class was generated from the following files:

/home/mk/src/OpenCPN/plugins/dashboard_pi/src/dial.h
/home/mk/src/OpenCPN/plugins/dashboard_pi/src/dial.cpp
