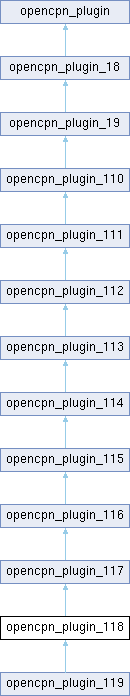

Inheritance diagram for opencpn_plugin_118:

Public Member Functions
	opencpn_plugin_118 (void *pmgr)

virtual bool	RenderGLOverlayMultiCanvas (wxGLContext pcontext, PlugIn_ViewPort vp, int canvasIndex, int priority)
	Render plugin overlay over chart canvas in OpenGL mode.

bool	RenderGLOverlayMultiCanvas (wxGLContext pcontext, PlugIn_ViewPort vp, int canvas_ix) override
	Renders plugin overlay graphics in OpenGL mode with canvas selection.

virtual bool	RenderOverlayMultiCanvas (wxDC &dc, PlugIn_ViewPort *vp, int canvas_ix, int priority)
	Render plugin overlay over chart canvas in non-OpenGL mode.

bool	RenderOverlayMultiCanvas (wxDC &dc, PlugIn_ViewPort *vp, int canvas_ix) override
	Renders plugin overlay graphics with canvas selection.

virtual bool	RenderGLOverlayMultiCanvas (wxGLContext pcontext, PlugIn_ViewPort vp, int canvasIndex)
	Renders plugin overlay graphics in OpenGL mode with canvas selection.

virtual bool	RenderOverlayMultiCanvas (wxDC &dc, PlugIn_ViewPort *vp, int canvasIndex)
	Renders plugin overlay graphics with canvas selection.

Public Member Functions inherited from opencpn_plugin_117
	opencpn_plugin_117 (void *pmgr)

virtual int	GetPlugInVersionPatch ()
	Forms a semantic version together with GetPlugInVersionMajor() and GetPlugInVersionMinor().

virtual int	GetPlugInVersionPost ()
	Post-release version part, extends the semver spec.

virtual const char *	GetPlugInVersionPre ()
	Pre-release tag version part, see GetPlugInVersionPatch()

virtual const char *	GetPlugInVersionBuild ()
	Build version part see GetPlugInVersionPatch().

virtual void	SetActiveLegInfo (Plugin_Active_Leg_Info &leg_info)

Public Member Functions inherited from opencpn_plugin_116
	opencpn_plugin_116 (void *pmgr)

virtual void	PrepareContextMenu (int canvasIndex)
	Prepares plugin context menu items.

Public Member Functions inherited from opencpn_plugin_115
	opencpn_plugin_115 (void *pmgr)

Public Member Functions inherited from opencpn_plugin_114
	opencpn_plugin_114 (void *pmgr)

Public Member Functions inherited from opencpn_plugin_113
	opencpn_plugin_113 (void *pmgr)

virtual bool	KeyboardEventHook (wxKeyEvent &event)
	Handles keyboard events from main window.

virtual void	OnToolbarToolDownCallback (int id)
	Handles toolbar button press.

virtual void	OnToolbarToolUpCallback (int id)
	Handles toolbar button release.

Public Member Functions inherited from opencpn_plugin_112
	opencpn_plugin_112 (void *pmgr)

virtual bool	MouseEventHook (wxMouseEvent &event)
	Handles mouse events from chart window.

virtual void	SendVectorChartObjectInfo (wxString &chart, wxString &feature, wxString &objname, double lat, double lon, double scale, int nativescale)
	Receives vector chart object information.

Public Member Functions inherited from opencpn_plugin_111
	opencpn_plugin_111 (void *pmgr)

Public Member Functions inherited from opencpn_plugin_110
	opencpn_plugin_110 (void *pmgr)

virtual void	LateInit (void)

Public Member Functions inherited from opencpn_plugin_19
	opencpn_plugin_19 (void *pmgr)

virtual void	OnSetupOptions (void)
	Allows plugin to add custom setup options.

Public Member Functions inherited from opencpn_plugin_18
	opencpn_plugin_18 (void *pmgr)

virtual bool	RenderOverlay (wxDC &dc, PlugIn_ViewPort *vp)

virtual bool	RenderGLOverlay (wxGLContext pcontext, PlugIn_ViewPort vp)
	Renders plugin overlay graphics in OpenGL mode.

virtual void	SetPluginMessage (wxString &message_id, wxString &message_body)

virtual void	SetPositionFixEx (PlugIn_Position_Fix_Ex &pfix)
	Updates plugin with extended position fix data.

virtual bool	RenderOverlay (wxMemoryDC pmdc, PlugIn_ViewPort vp)
	Render plugin overlay graphics using standard device context.

Public Member Functions inherited from opencpn_plugin
	opencpn_plugin (void *pmgr)

virtual int	Init (void)
	Initialize the plugin and declare its capabilities.

virtual bool	DeInit (void)
	Clean up plugin resources.

virtual int	GetAPIVersionMajor ()
	Returns the major version number of the plugin API that this plugin supports.

virtual int	GetAPIVersionMinor ()
	Returns the minor version number of the plugin API that this plugin supports.

virtual int	GetPlugInVersionMajor ()
	Returns the major version number of the plugin itself.

virtual int	GetPlugInVersionMinor ()
	Returns the minor version number of the plugin itself.

virtual wxBitmap *	GetPlugInBitmap ()
	Get the plugin's icon bitmap.

virtual wxString	GetCommonName ()
	Get the plugin's common (short) name.

virtual wxString	GetShortDescription ()
	Get a brief description of the plugin.

virtual wxString	GetLongDescription ()
	Get detailed plugin information.

virtual void	SetDefaults (void)
	Sets plugin default options.

virtual int	GetToolbarToolCount (void)
	Returns the number of toolbar tools this plugin provides.

virtual int	GetToolboxPanelCount (void)
	Returns the number of preference pages this plugin provides.

virtual void	SetupToolboxPanel (int page_sel, wxNotebook *pnotebook)
	Creates a plugin preferences page.

virtual void	OnCloseToolboxPanel (int page_sel, int ok_apply_cancel)
	Handles preference page closure.

virtual void	ShowPreferencesDialog (wxWindow *parent)
	Shows the plugin preferences dialog.

virtual void	SetCursorLatLon (double lat, double lon)
	Receives cursor lat/lon position updates.

virtual void	SetCurrentViewPort (PlugIn_ViewPort &vp)
	Notifies plugin of viewport changes.

virtual void	SetPositionFix (PlugIn_Position_Fix &pfix)
	Updates plugin with current position fix data.

virtual void	SetNMEASentence (wxString &sentence)
	Receive all NMEA 0183 sentences from OpenCPN.

virtual void	SetAISSentence (wxString &sentence)
	Receive all AIS sentences from OpenCPN.

virtual void	ProcessParentResize (int x, int y)
	Handles parent window resize events.

virtual void	SetColorScheme (PI_ColorScheme cs)
	Updates plugin color scheme.

virtual void	OnToolbarToolCallback (int id)
	Handles toolbar tool clicks.

virtual void	OnContextMenuItemCallback (int id)
	Handles context menu item selection.

virtual void	UpdateAuiStatus (void)
	Updates AUI manager status.

virtual wxArrayString	GetDynamicChartClassNameArray (void)
	Returns array of dynamically loaded chart class names.

Detailed Description

Examples: /home/mk/src/OpenCPN/include/ocpn_plugin.h.

Definition at line 1892 of file ocpn_plugin.h.

Constructor & Destructor Documentation

◆ opencpn_plugin_118()

opencpn_plugin_118::opencpn_plugin_118 ( void * pmgr )

Definition at line 278 of file ocpn_plugin.cpp.

Member Function Documentation

◆ RenderGLOverlayMultiCanvas() [1/3]

bool opencpn_plugin_118::RenderGLOverlayMultiCanvas	(	wxGLContext *	pcontext,
		PlugIn_ViewPort *	vp,
		int	canvasIndex )

inlineoverridevirtual

Renders plugin overlay graphics in OpenGL mode with canvas selection.

Extended version of RenderGLOverlay() that supports multiple chart canvases and overlay priorities.

Parameters

pcontext	OpenGL context for drawing
vp	Current viewport parameters
canvasIndex	Index of target canvas (0-based)
priority	Drawing priority level (OVERLAY_LEGACY etc)

Returns: True if overlay was rendered

Reimplemented from opencpn_plugin_116.

Definition at line 1916 of file ocpn_plugin.h.

◆ RenderGLOverlayMultiCanvas() [2/3]

bool opencpn_plugin_116::RenderGLOverlayMultiCanvas	(	wxGLContext *	pcontext,
		PlugIn_ViewPort *	vp,
		int	canvasIndex )

virtual

Renders plugin overlay graphics in OpenGL mode with canvas selection.

Extended version of RenderGLOverlay() that supports multiple chart canvases and overlay priorities.

Parameters

pcontext	OpenGL context for drawing
vp	Current viewport parameters
canvasIndex	Index of target canvas (0-based)
priority	Drawing priority level (OVERLAY_LEGACY etc)

Returns: True if overlay was rendered

Reimplemented from opencpn_plugin_116.

Definition at line 1841 of file ocpn_plugin.cpp.

◆ RenderGLOverlayMultiCanvas() [3/3]

bool opencpn_plugin_118::RenderGLOverlayMultiCanvas	(	wxGLContext *	pcontext,
		PlugIn_ViewPort *	vp,
		int	canvasIndex,
		int	priority )

virtual

Render plugin overlay over chart canvas in OpenGL mode.

Parameters

pcontext	Pointer to the OpenGL context
vp	Pointer to the Viewport
canvasIndex	Index of the chart canvas, 0 for the first canvas
priority	Priority, plugins only upgrading from older API versions should draw only when priority is OVERLAY_LEGACY (0)

Returns: true if overlay was rendered, false otherwise

Definition at line 280 of file ocpn_plugin.cpp.

◆ RenderOverlayMultiCanvas() [1/3]

bool opencpn_plugin_118::RenderOverlayMultiCanvas	(	wxDC &	dc,
		PlugIn_ViewPort *	vp,
		int	canvasIndex )

inlineoverridevirtual

Renders plugin overlay graphics with canvas selection.

Extended version of RenderOverlay() that supports multiple chart canvases and overlay priorities.

Parameters

dc	Device context for drawing
vp	Current viewport parameters
canvasIndex	Index of target canvas (0-based)
priority	Drawing priority level (OVERLAY_LEGACY etc)

Returns: True if overlay was rendered

Reimplemented from opencpn_plugin_116.

Definition at line 1936 of file ocpn_plugin.h.

◆ RenderOverlayMultiCanvas() [2/3]

bool opencpn_plugin_118::RenderOverlayMultiCanvas	(	wxDC &	dc,
		PlugIn_ViewPort *	vp,
		int	canvas_ix,
		int	priority )

virtual

Render plugin overlay over chart canvas in non-OpenGL mode.

Parameters

dc	Reference to the "device context"
vp	Pointer to the Viewport
canvasIndex	Index of the chart canvas, 0 for the first canvas
priority	Priority, plugins only upgrading from older API versions should draw only when priority is OVERLAY_LEGACY (0)

Returns: true if overlay was rendered, false otherwise

Definition at line 287 of file ocpn_plugin.cpp.

◆ RenderOverlayMultiCanvas() [3/3]

bool opencpn_plugin_116::RenderOverlayMultiCanvas	(	wxDC &	dc,
		PlugIn_ViewPort *	vp,
		int	canvasIndex )

virtual

Renders plugin overlay graphics with canvas selection.

Extended version of RenderOverlay() that supports multiple chart canvases and overlay priorities.

Parameters

dc	Device context for drawing
vp	Current viewport parameters
canvasIndex	Index of target canvas (0-based)
priority	Drawing priority level (OVERLAY_LEGACY etc)

Returns: True if overlay was rendered

Reimplemented from opencpn_plugin_116.

Definition at line 1855 of file ocpn_plugin.cpp.

The documentation for this class was generated from the following files:

/home/mk/src/OpenCPN/include/ocpn_plugin.h
/home/mk/src/OpenCPN/model/src/ocpn_plugin.cpp
